Multi-Channel eXpansion (MCX)

Multi-Channel eXpansion

The InsiteIG MCX is designed to expand the functionality of the MCA (Multi-Channel Analyzer) by providing additional outputs.

The MCX provides 8 analog outputs that are isolated active 4-20mA, and each analog output may be assigned to any sensor channel. There are also 4 independent programmable set point control relays that may be assigned to any sensor channel.

The MCX is connected to the MCA by a 3 wire RS485 Modbus connection. The RS-485 interface allows for greater flexibility when deciding where to mount the MCA and MCX in your plant. The MCA and MCX may be located up to 1000 feet from each other.

The MCX configurations of the Modbus connection, analog outputs, and set point relays are done at the MCA.

Download Files:

See our sensor selection below to match a sensor with your needs.

Continuous Sensors:

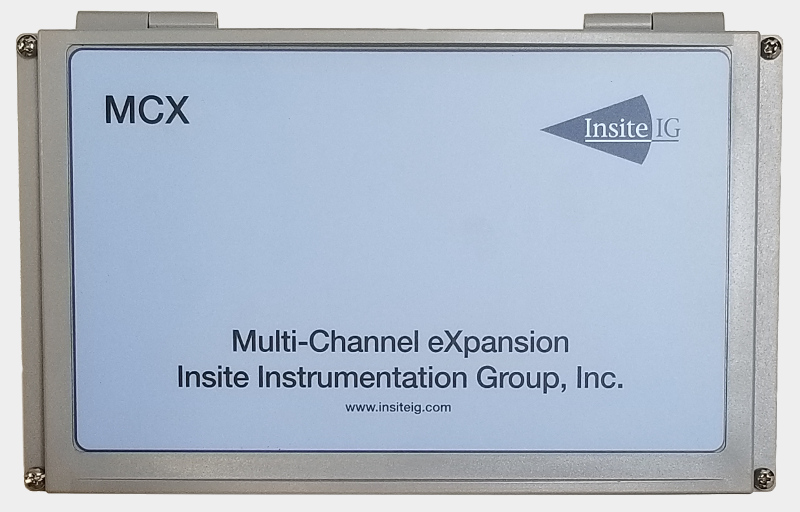

Multi-Channel Expansion (MCX) Multi-Channel Expansion (MCX)
  • Temp. range: -20°C to 70°C
  • Enclosure NEMA 4X
  • Optically isolated RS-485 Modbus
  • Input power 100/250VAC
  • 8 Optically isolated 4-20mA
  • 4 Dry contact 10 amp setpoint relays
Sun Shade Mounting Kit

Sun Shade Mounting Kit

See our Setup Videos to find out more about Analyzer Mounting.
The MCA, MCX, and MCR are mounted with the same hardware as the SCA and DCA.
