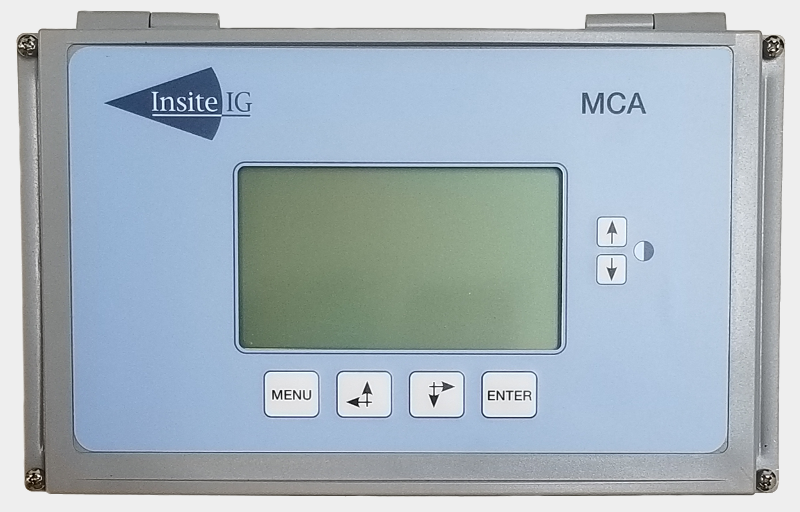

Multi-Channel Analyzer (MCA)

Multi-Channel Analyzer
DO, SS, ORP (Redox), and pH

The InsiteIG MCA is a unique system that will accept any combination of up to 8 standard InsiteIG sensors (DO, SS, pH, or ORP), and automatically configure for the correct operation. The system allows for flexible and economical process monitoring and control. When paired with the InsiteIG MCR (Multi-Channel Remote transmitter) all data is uploaded to the cloud in real time and can be viewed on any computer or smart device.

The MCA has a graphical LCD display that is backlit and UV protected. There are two lines per sensor for standard sensor information. The top line displays the channel number for all sensors and temperature for the DO, pH, and ORP sensors. The bottom line displays sensor type, reading, and units of the sensor. The unit comes standard with four sensor inputs, upgradable to eight by adding a daughter board

The MCA will automatically recognize the sensor type (DO, SS, pH, or ORP) and configure itself for proper operation. The DO sensor will come factory calibrated and ready for use. The SS sensor is zeroed at the factory, and comes with a default calibration curve. The pH electrode is factory calibrated with its holder, and the ORP electrode is matched with its holder. To utilize factory calibrations for SS and pH, sensors must be connected to the analyzer and channel indicated per the "Factory Sensor Configuration" label located on the analyzer. Custom sensor configuration is available upon request.

The Optical DO sensor does not need sensor caps, membranes, fill solutions, nor routine calibrations and maintenance. The SS sensor is based on near infrared technology, which eliminates inaccuracies caused by changes in the process color or changes in particle size. The pH sensor is flat glass / double reference junction temperature compensated construction with embedded electronics for reliable digital communications. The ORP sensor is flat surface platinum / double reference junction construction with embedded electronics for reliable digital communications.

Download Files:

See our sensor selection below to match a sensor with your needs.

Continuous Sensors:

Multi-Channel Analyzer (MCA) Multi-Channel Analyzer (MCA)
  • 4 Sensor channels
    (upgradable to 8)
  • Automatic sensor configuration
  • Continuous display of all channels
  • Memory backup
  • Backlit graphical LCD display
  • UV protected display
  • Contrast adjustment via keypad
  • Temp. range: -20°C to 70°C
  • Enclosure NEMA 4X
  • Optically isolated RS-485 Modbus
  • Input power 100/250VAC
  • 2 Clean relays

    with optional MCX expansion box

  • 8 Optically isolated 4-20mA
  • 4 Dry contact 10 amp setpoint relays
Sun Shade Mounting Kit

Sun Shade Mounting Kit

See our Setup Videos to find out more about Analyzer Mounting.
The MCA, MCX, and MCR are mounted with the same hardware as the SCA and DCA.
