Multi-Channel Analyzer (MPA-48)

Multi-Channel Analyzer (MPA-48)


Specifications

  • 4 Sensor channels
    (upgradable to 8)
  • Automatic sensor configuration
  • Continuous display of all channels
  • Memory backup
  • Backlit graphical LCD display
  • UV protected display
  • Contrast adjustment via keypad
  • Temp. range: -20°C to 70°C
  • Enclosure NEMA 4X
  • Optically isolated RS-485 Modbus
  • RS_232 serial port

Outputs

  • 4 Optically isolated 4-20mA
    (upgradable to 8)
  • 4 Dry contact 10 amp setpoint relays
    (upgradable to 8)
  • 1 Alarm relay
  • 1 Clean relay

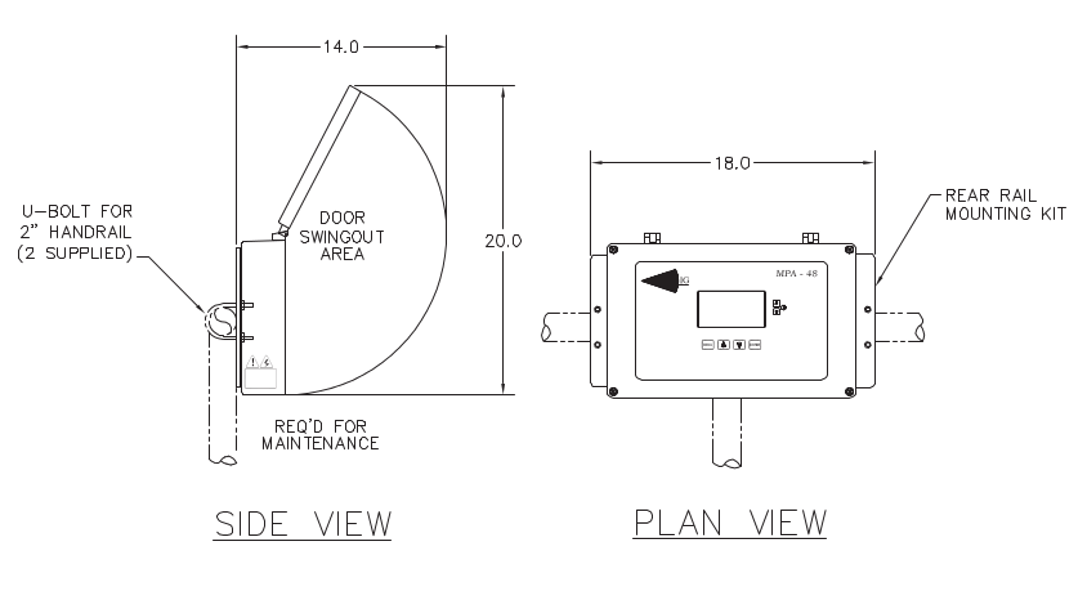

MPA-48 Standard Mounting

MPA-48 Standard Mounting


MPA-48

Multi-Channel Analyzer
DO, SS, pH, and ORP

The InsiteIG MPA48 is a unique system that accept any combination of 1 to 8 standard InsiteIG sensors (DO, SS, pH, or ORP), and automatically configure for the correct operation. The system allows for flexible and economical process monitoring and control.

The MPA-48 has a graphical LCD display that is backlit and UV protected. There are two lines per sensor for standard sensor information. The top line displays the channel number, and temperature for DO, pH, and ORP sensors. The bottom line displays sensor type, reading, and units of the sensor.

The MPA-48 will automatically recognize the sensor type (DO, SS, pH, or ORP) and configure itself for proper operation. The DO sensor will come factory calibrated and ready for use. The SS sensor is zeroed at the factory, and comes with a default calibration curve. The pH electrode is factory calibrated with its holder, and the ORP electrode is matched with its holder. To utilize factory calibrations for SS and pH, sensors must be connected to the analyzer and channel indicated per the "Factory Sensor Configuration" label located on the analyzer. Custom sensor configuration is available upon request.

The Optical DO sensor does not need sensor caps, membranes, fill solutions, nor routine calibrations and maintenance. The SS sensor is based on near infrared technology, which eliminates inaccuracies caused by changes in the process color or changes in particle size. The pH sensor is flat glass / double reference junction temperature compensated construction with embedded electronics for reliable digital communications. The ORP sensor is flat surface platinum / double reference junction construction with embedded electronics for reliable digital communications.

Download Files:


See our sensor selection below to match a sensor with your needs.

Continuous Sensors:

Dissolved Oxygen    Suspended Solids    pH    ORP
